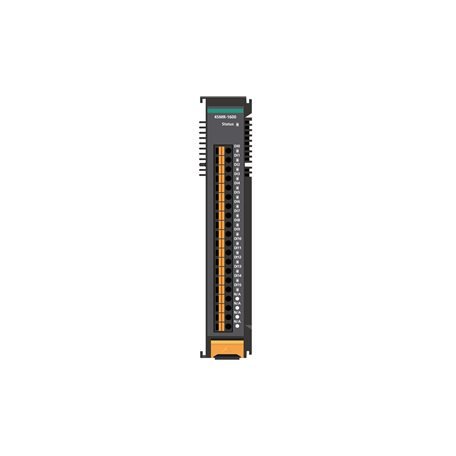

Moxa 45MR-1600-T

Moxa 45MR-1600-T

Artikelnummer: 45MR-1600-T
Kategorie: ioThinx 4500 Series (45MR) Modules
Hersteller: Moxa

Module for the ioThinx 4500 Series, 16 DIs, 24 VDC, PNP, -40 to 75°C operating temperature

213,93 €

exkl. 19% USt. , zzgl. (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

Stk

Beschreibung

45MR-1600-T

ioThinx 4500 Series (45MR) Modules

Module for the ioThinx 4500 Series, 16 DIs, 24 VDC, PNP, -40 to 75°C operating temperature

Input/Output Interface

Digital Input Channels
- 16
Isolation
- 3k VDC or 2k Vrms

Digital Inputs

Connector
- Spring-type Euroblock terminal
Sensor Type
- Dry contact
  Wet contact (PNP)
I/O Mode
- DI or event counter (only supports the first 4 channels)
Dry Contact
- On: short to FP+
  Off: open
Wet Contact (DI to FP-)
- On: 10 to 30 VDC
  Off: 0 to 3 VDC
Counter Frequency
- 1 kHz
Digital Filtering Time Interval
- Software configurable

Power Consumption

System Power
- 59.4 mA @ 3.3 VDC
Field Power
- 19.3 mA @ 12 VDC
  25.3 mA @ 24 VDC

Physical Characteristics

Housing
- Plastic
Dimensions
- 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
Weight
- 77 g (0.17 lb)
Installation
- DIN-rail mounting
Strip Length
- I/O cable, 9 to 10 mm
Wiring
- 18 to 24 AWG

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Altitude
- Up to 4000 meters Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-6
Safety
- UL 61010-2-201
Hazardous Locations
- ATEX, Class I Division 2

Declaration

Green Product
- RoHS, CRoHS, WEEE

MTBF

Time
- 661,247 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
