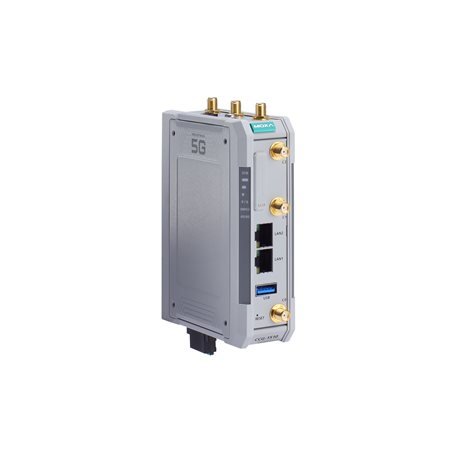

Moxa CCG-1510-US-T

Moxa CCG-1510-US-T

Artikelnummer: CCG-1510-US-T
Kategorie: CCG-1500 Series
Hersteller: Moxa

Industrial private 5G cellular gateway, N48 band for US, IP30, -40 to 70°C operating temperature

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 28 Tagen.

Beschreibung

CCG-1510-US-T

CCG-1500 Series

Industrial private 5G cellular gateway, N48 band for US, IP30, -40 to 70°C operating temperature

Media Converter Interface

Ethernet Ports
- Auto sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports
- RS-232/422/485 ports x 1 (5-pin terminal block)
Cellular Antenna Connector (with GPS)
- SMA x 6
SIM Format
- Nano
Number of SIMs
- 2

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)
- 2
Standards
- IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3u for 100BaseT(X)
Magnetic Isolation Protection
- 1.5 kV (built-in)

Serial Interface

Console Port
- 1 x 4-pin header to DB9 console port
Data Bits
- 5, 6, 7, 8
Parity
- None, Even, Odd, Space, Mark
Stop Bits
- 1, 1.5, 2
Baudrate
- 9600 to 115200 bps

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Ethernet Software Features

Configuration Options
- Web Console (HTTPS)
Management
- LwM2M Client
Network Protocols
- VxLAN
  IP Passthrough
  NAT
  Modbus RTU to TCP
Firewall
- Filter: ICMP, IP Address

Cellular Interface

Cellular Standards
- 5G R15
Frequency Bands Supported
- NR: N48

LED Indicators

System
- Power x 1
  SIM card indicator x 1
  5G / LTE indicator x 1
Wireless Signal Strength
- Cellular x 3

Power Parameters

Input Voltage
- 9 to 24 VDC
Power Consumption
- Average: 8 W
  Peak: 11 W
Input Current
- 9 to 24 VDC @ 1.33 to 0.5 A min
Power Connector
- Terminal block

Physical Characteristics

Dimensions
- 100 x 125 x 35.2 mm (3.93 x 4.92 x 1.38 in)
Housing
- Metal
  SECC
Installation
- DIN-rail mounting
  Wall mounting (with optional kit)
IP Rating
- IP30
  Note: The rubber SIM cover and console port cover should be attached. For CCG-1520-T, the SMA protection cover must also be attached.
Weight
- 750 g (1.65 lb)

Environmental Limits

Operating Temperature
- -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)
- -20 to 70°C (-4 to 158°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

MTBF

Time
- 1,036,724 hrs
Standards
- Telcordia SR332

Warranty

Warranty Period
- 5 years
Details
- See www.moxa.com/warranty
